UL4703 CABLES

1.Scope

PV wire is rated 600, 1000 or 2000 V, and is suitable for ac and dc systems. This wire is rated 90'c, 105'c, 125°C or 150'cdry and 90'c wet. PV wire employs 12 AWG - 2000 kcmil stranded aluminum or copper-dlad aluminum, or 18 AWG - 2000kcmil stranded copper, tined copper conductors.

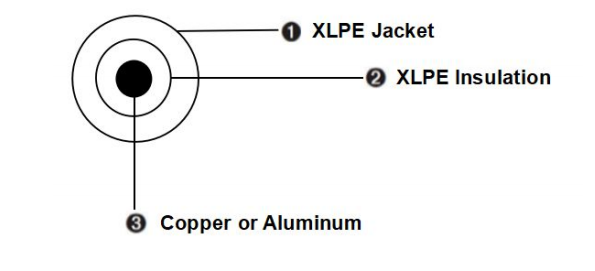

2.Construction
