UF-B cable

Applications

UF-B cable is generally used as feeder to outside post lamps,pumps, and other loads or apparatus fed from a distribution point in an existing

building as specified in the 2011 National Electrical Code. UF-B cable may be used underground, including direct burial. Multiple conductor UF-B cable may be used for interior branch circuit wiring in residential or agricultural buildings at conductor temperatures not to exceed 90°C (with ampacity limited to that for 60°C conductors) as specified by the National Electrical Code. UF-B can be used in applications permitted for NMC in Section 334.10(B) of the National Electrical Code. Voltage rating for UF-B cable is 600 volts.

Specifications

ASTM - B3 and B-8

UL Standard 83

UL Standard 493

Federal Specification A-A-59544

National Electrical Code, NFPA 70.

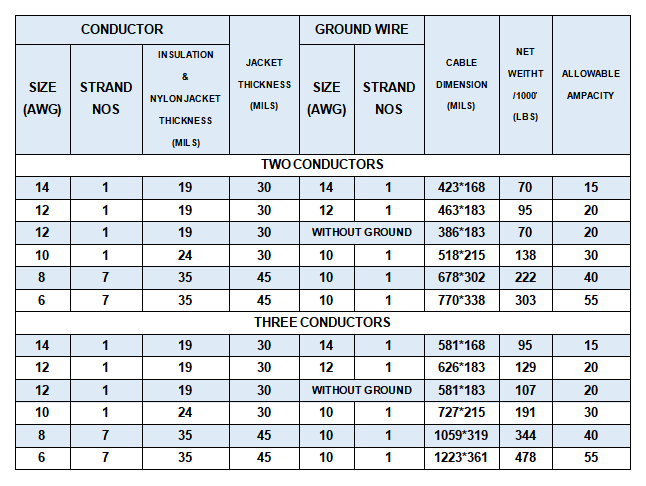

   Data
