RW90 COPPER

Copper Conductor, 600V,90℃ MAX - 40℃MIN,NO.14 AWG to 1000 KCMIL,Sunlight Resistant, FT4 Flame Test Rating - (in all colours 350 KCMIL & larger)

Applications:

•     For exposed wiring and raceways (except cable tray) in wet and dry locations.

•     Minimum recommended installation temperature of minus 40°C with proper handling procedures.

Specifications and Compliances:

•    CSAC22.2 No. 38, Thermoset-insulated wires and cables (Type RW90)

•    -40°C Cold Bend and -40°CCold Impact

•     Sunlight Resistant SUN RES if black only;

Print Sample：

001M 2/0 AWG COPPER CABLES TYPE RW90 HT  FT1 600V SR CSA271587  CSA C22.2 No38 05-2024

Construction:

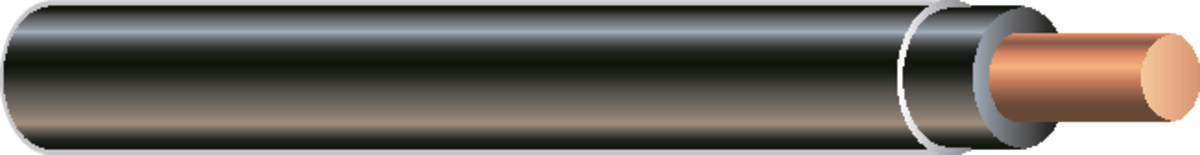

Conductor: RW90 conductor is a compact soft drawn bare copper, with Class B stranding per ASTM

Insulation:  RW90 has abrasion, heat and moisture resistant cross-linked polyethylene insulation XLPE.

Single copper conductor with low temperature, moisture resisting XLPE (cross linked polyethylene) insulation.

Standard sizes No. 8 AWG and larger are also sunlight resistant, marked "Sun Res". Rated FT4 in sizes 350 KCMIL and larger.

Insulation colour:

• Standard colours are available in black, red, blue, white and green or as requirments.

Data:
