600/1000/2000
Aluminio y cobre
UL4703 CABLES
1.Campo de aplicación

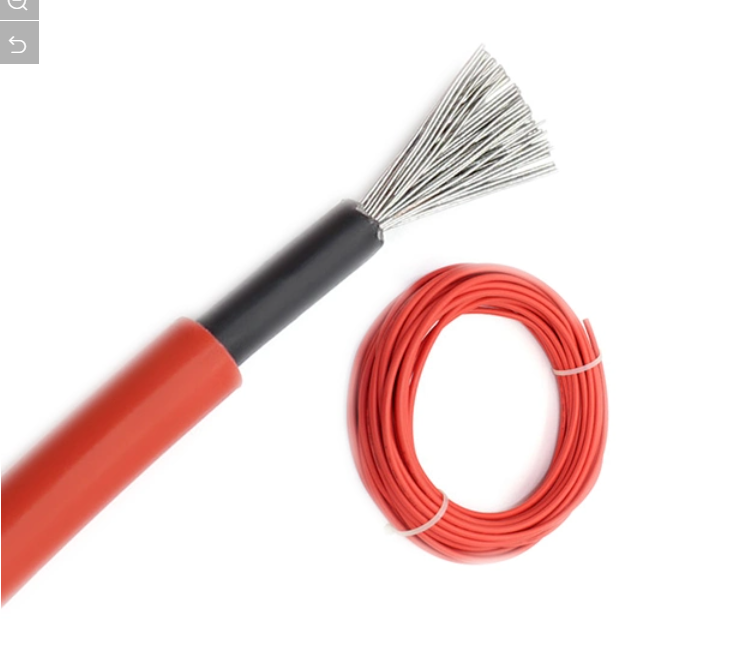

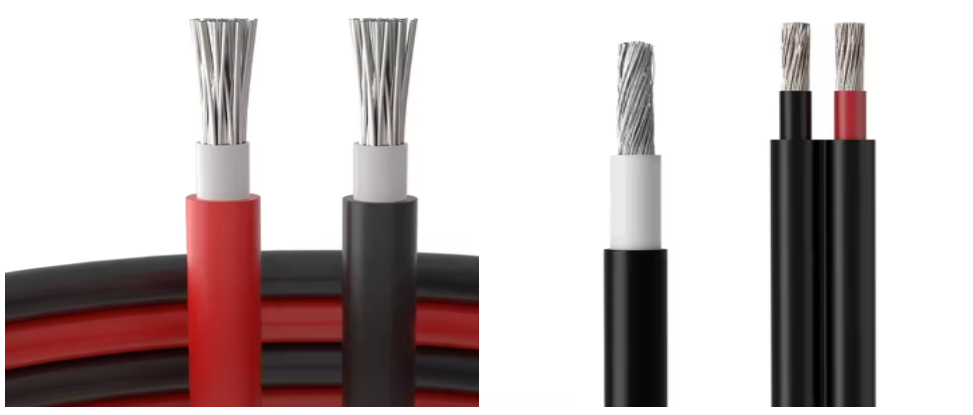

El cable fotovoltaico tiene una potencia nominal de 600, 1000 o 2000 V y es adecuado para sistemas de AC y DC. Este Cable tiene una clasificación de 90 ° C, 105 ° C, 125 ° C o 150 ° C seco y 90 ° C húmedo. El cable PV emplea conductores de cobre o aluminio trenzado de 12 AWG - 2000 kcmil

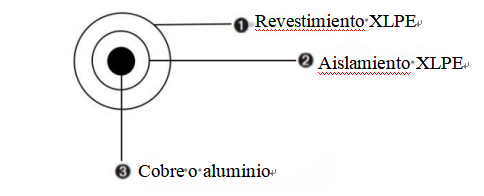

2.Construcción
Tamaño | Diámetro del conductor | Numero de hilo | Espesor del aislamiento | Diametro | Peso neto |
AWG o Kcmil | mm | Nos | mm | mm | kg/km |
12 | 2.16 | 7 | 1.9 | 6 | 46 |
10 | 2.72 | 7 | 1.9 | 6.5 | 56 |
8 | 3.4 | 7 | 2.15 | 7.7 | 80 |
6 | 4.29 | 7 | 2.15 | 8.6 | 102 |
4 | 5.41 | 7 | 2.15 | 9.7 | 135 |
3 | 6.02 | 7 | 2.15 | 10.3 | 156 |
2 | 6.81 | 7 | 2.15 | 11.1 | 183 |
1 | 7.59 | 18 | 2.66 | 12.9 | 244 |
1/0 | 8.53 | 18 | 2.66 | 13.9 | 286 |
2/0 | 9.55 | 18 | 2.66 | 14.9 | 337 |
3/0 | 10.74 | 18 | 2.66 | 16.1 | 400 |
4/0 | 12.07 | 18 | 2.66 | 17.4 | 477 |
250 | 13.21 | 35 | 3.04 | 19.3 | 579 |
300 | 14.48 | 35 | 3.04 | 20.6 | 665 |
350 | 15.65 | 35 | 3.04 | 21.7 | 750 |
400 | 16.74 | 35 | 3.04 | 22.8 | 836 |
450 | 17.78 | 35 | 3.04 | 23.9 | 914 |
500 | 18.69 | 35 | 3.04 | 24.8 | 1028 |
550 | 19.69 | 58 | 3.43 | 26.6 | 1133 |
600 | 20.65 | 58 | 3.43 | 27.5 | 1217 |
650 | 21.46 | 58 | 3.43 | 28.3 | 1298 |
700 | 22.28 | 58 | 3.43 | 29.1 | 1382 |
750 | 23.06 | 58 | 3.43 | 29.9 | 1463 |
800 | 23.83 | 58 | 3.43 | 30.7 | 1543 |
900 | 25.37 | 58 | 3.43 | 32.2 | 1707 |
1000 | 26.92 | 58 | 3.43 | 33.8 | 1871 |
Calibre | Diámetro del conductor | Filamentos | Espesor del aislamiento | Diametro | Peso neto |
AWG o Kcmil | mm | Nos | mm | mm | kg/km |
12 | 2.16 | 7 | 1.52 | 5.2 | 36 |
10 | 2.72 | 7 | 1.52 | 5.76 | 45 |
8 | 3.4 | 7 | 1.9 | 7.2 | 71 |
6 | 4.29 | 7 | 1.9 | 8.09 | 92 |
4 | 5.41 | 7 | 1.9 | 9.21 | 124 |
3 | 6.02 | 7 | 1.9 | 9.82 | 145 |
2 | 6.81 | 7 | 1.9 | 10.61 | 170 |
1 | 7.59 | 18 | 2.41 | 12.41 | 230 |
1/0 | 8.53 | 18 | 2.41 | 13.35 | 271 |
2/0 | 9.55 | 18 | 2.41 | 14.37 | 320 |
3/0 | 10.74 | 18 | 2.41 | 15.56 | 382 |
4/0 | 12.07 | 18 | 2.41 | 16.89 | 457 |
250 | 13.21 | 35 | 2.79 | 18.79 | 557 |
300 | 14.48 | 35 | 2.79 | 20.06 | 642 |
350 | 15.65 | 35 | 2.79 | 21.23 | 725 |
400 | 16.74 | 35 | 2.79 | 22.32 | 810 |
450 | 17.78 | 35 | 2.79 | 23.36 | 887 |
500 | 18.69 | 35 | 2.79 | 24.27 | 999 |
550 | 19.69 | 58 | 3.18 | 26.05 | 1103 |
600 | 20.65 | 58 | 3.18 | 27.01 | 1185 |
650 | 21.46 | 58 | 3.18 | 27.82 | 1265 |
700 | 22.28 | 58 | 3.18 | 28.64 | 1348 |
750 | 23.06 | 58 | 3.18 | 29.42 | 1428 |
800 | 23.83 | 58 | 3.18 | 30.19 | 1508 |
900 | 25.37 | 58 | 3.18 | 31.73 | 1670 |
1000 | 26.92 | 58 | 3.18 | 33.28 | 1832 |
